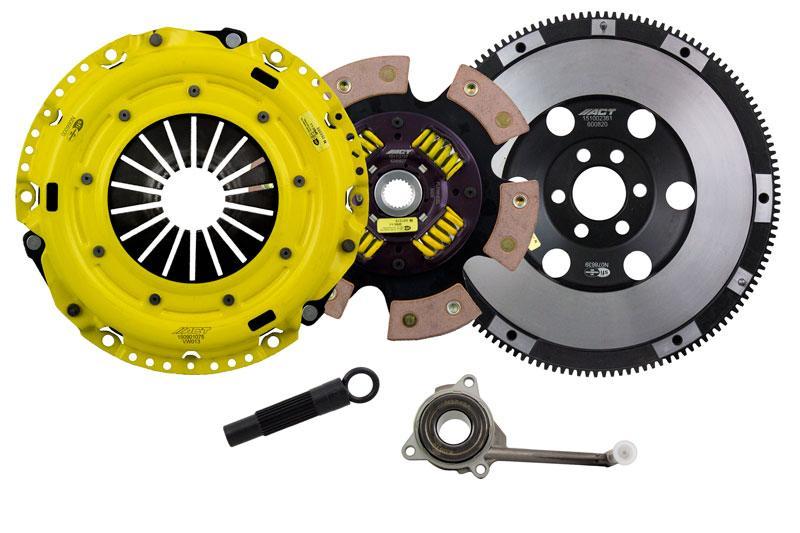

ACT HD/Race Sprung 6 Pad Clutch Kit | Multiple Fitments (VW5-HDG6)

HD/Race Sprung 6 Pad Clutch Kit by ACT

VW5-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency.

ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

• Product Weight (lbs.): 30.2
• Torque Capacity (ft/lbs.): 525
• Torque Capacity Over OE: 73%
• Disc Material: Ceramic
• Clutch Disc Diameter (Inches): 9.4
• Clutch Disc Diameter (Millimeters): 240
• Input Shaft Diameter (inches): 0.9375
• Pressure Plate Type: Heavy Duty
• Flywheel Type: Streetlite

Benefits

• Light to moderate pedal effort
• Aggressive engagement
• OE to mild gear rattle
• Moderate friction life
• Rigid design may increase spline wear
• Uses select ceramic friction materials for high heat tolerance and maximum performance
• 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Applications

• 2000-2006 Audi TT Quattro
• 2002-2004 Seat Toledo
• 2002-2004 Volkswagen Beetle
• 2004-2005 Volkswagen Jetta
• 2002-2003 Volkswagen Golf

What's In The Box?

• 1 - ACT HD/Race Sprung 6 Pad Clutch Kit

Warranty

• ACT 1-Year Limited Warranty
